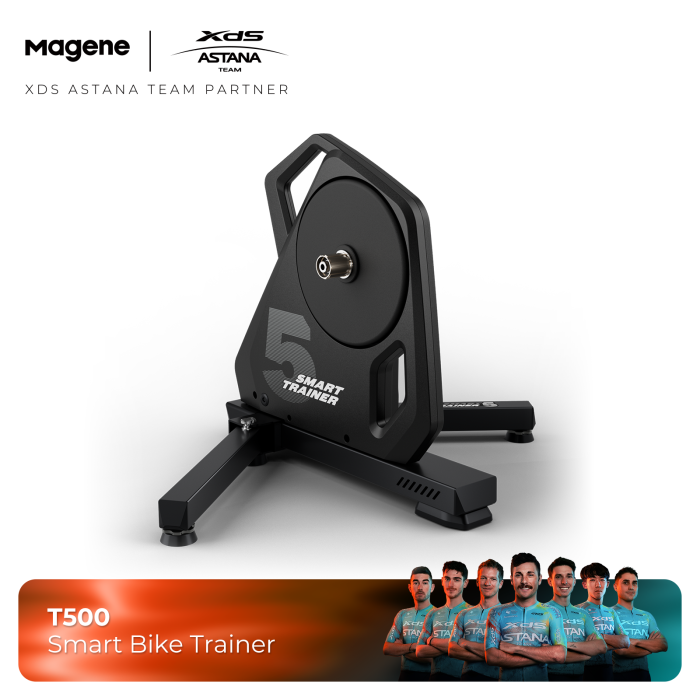

T500 Smart Trainer

Name: T500 Smart Trainer
Brand: Magene
SKU: 215
Price: 699 USD
Availability: OutOfStock

$699.00

Tax included

There are no reviews yet.

Redefining the Summit of Indoor Training.

Magene T500 Smart Trainer is designed for professional cyclists, featuring Magene’s second-generation self-developed permanent magnet synchronous motor. With a peak torque of 88 N·m, it delivers unparalleled resistance and precision, providing riders with an immersive outdoor-like riding experience from the comfort of their home.

Compare Add to Wishlist

Overview

Professional Training Like Never Before

The T500 smart trainer, equipped with a second-generation fully self-developed permanent magnet synchronous motor, achieves a peak torque of 88 N·m. This enables the trainer to deliver stronger resistance, simulating more complex riding conditions such as steep slopes and mountain roads. The T500 smart trainer offers a personalized inertia experience based on rider parameters, with 16,000 motor control adjustments per second for precise resistance and inertia control. It simulates various terrains (climbs, flats, descents) for an outdoor-like ride. In ERG mode, this control ensures smooth interval transitions, enhancing training effectiveness with unmatched precision compared to electromagnetic trainers.

Every Pedal Stroke Counts

Power accuracy is the guarantee of training effectiveness. With ±1% power accuracy, every training session is precise and reliable. Whether for daily training or professional testing, accurate power feedback allows you to focus entirely on your ride. Moreover, precise power data lets you clearly track your progress in every session, whether you're building endurance or pushing your limits. The ±1% accuracy ensures every step you take is confident, and maximizing your training results.

Unleash Your Limits to the Fullest

With a maximum power output of 2200W, the T500 smart trainer can handle the extreme sprints and short-distance burst tests of professional cyclists. Even if non-professional users can not reach this level, the high power ceiling extends the lifespan of your equipment, while also leaving room for future performance improvements.

T500 smart trainer supports up to 20% gradient simulation, far exceeding HC-level climbs*. It supports high-intensity climbing training, helping you break through fitness plateaus while replicating the steep gradients found in actual races.

*HC-level climbs: An abbreviation of the French term "hors catégorie," meaning "beyond category," indicating particularly difficult ascents. This could be climbs over 10 kilometers with at least a 7.5% average gradient, or continuous 25 kilometers with a 6% or steeper average gradient.

Efficient Cooling System: High-intensity climbs place greater demands on the trainer's cooling capabilities. The T500 smart trainer features a cooling system that combines passive and active cooling, significantly enhancing heat dissipation and extending the device's lifespan. It meets the needs of long-distance, steep-gradient training.

Downhill Assistance*: Balance Training And Rest

Scientific training requires a balance of effort and rest. By calculating wind resistance, rolling resistance, and gradient, the T500 smart trainer simulates a realistic downhill experience, providing a moment of relaxation after training.

*This feature requires a power connection.

Self-Power Upgrade, Enjoy Immersive Experience without Cord Constraints

No need to plug in, no loss of performance. T500 smart trainer equipped with advanced self-power technology, truly achieving cordless cycling. Whether in your living room, balcony, backyard, or even at the race track for warm-ups, you can break free from power cable limitations and start your training anytime, anywhere.

The T500 smart trainer features a built-in super capacitor, ensuring stable communication connectivity even after you stop pedaling. This prevents interruptions in ride recording and avoids frequent disconnections from APPs, bike computers, and other devices.

Even if you pause for a break, take a drink, or refuel during your ride, you can seamlessly continue your training afterward, achieving true free cycling without the need to plug in!

Feel the Road Without Plugging In: By optimizing motor control, the T500 smart trainer can simulate road feel in self-powered mode. Enjoy 9 immersive road sensations anytime, anywhere. These include concrete plates, cattle grids, hard cobblestones, small cobblestones, brick roads, off road (compact dirt), gravel, ice and wooden boards.

*Road feel simulation requires the Onelap APP.

Optimized Structural Design, Compatible with More Frames and Derailleurs

To ensure broader compatibility, the T500 smart trainer has optimized its overall structural design.

The unobstructed design under the drive-side frame and a narrower main beam width on the non-drive side effectively avoids the trainer from scraping against the bike frame and the clamp.

With a body width of 74.6mm, it offers better compatibility with frames, derailleurs, and 12-speed cassettes.

Three-Channel Bluetooth, Master Your Data Distribution

Equipped with three-channel Bluetooth, the T500 smart trainer lets you connect up to three devices simultaneously, such as your smartphone, tablet, and other devices. This allows you to manage your trainer through TrainerRoad on your phone while uploading power data to Zwift or ROUVY on your tablet, perfectly accommodating your needs for distributed data storage and control.

Heart Rate Monitor Bridge

The T500 Smart Bike Trainer serves as a Bluetooth bridge for heart rate monitors. If your monitor supports only ANT+ and can't connect to your smartphone or tablet, the trainer can link these monitors to Bluetooth-enabled devices, enhancing the versatility of models like the Garmin HRM4-RUN and HRM4-TRI. This feature is especially advantageous for Apple TV users, as it frees up a Bluetooth slot, overcoming Apple TV's limit of two Bluetooth connections.

Advanced Compatibility, Compatible with all Mainstream Software

The T500 smart trainer supports ANT+ FE-C and BLE FTMS protocols, making it compatible with mainstream bike computers and indoor cycling software, such as Onelap, Zwift, TrainerRoad, ROUVY, Kinomap, Wahoo SYSTM X, BKOOL, MY WHOOSH.

*Compatibility may vary depending on software version or system environment.

More Powerful Design

<56 dB Silent Design: The silent design, combined with the included 4mm floor mat, allows you to focus on your ride without disturbing others.

Free Onelap Subscription For 6 Months: With the activation of your T500 smart trainer, you'll be granted a complimentary 6-month Onelap subscription.

Jump On & Go, No Calibration Required: Ready to Ride Instantly with Zero Calibration Hassle.

Easy To Carry: Foldable legs and a large handle make it easy to move around.

Spec

Specifications
Product Name	T500 Smart Trainer
Maximum Power	2200W
Simulated Maximum Gradient	20%
Power Accuracy	±1%
Bluetooth	Supported (can be connected by three Bluetooth devices)
ANT+	Support
Output Data	Power, cadence, speed
Heart Rate Belt Bridge	Support
Downhill Simulation	Support
Road Simulation	Support (Onelap)
Transmission System	Permanent magnet synchronous motor
Moment of Inertia	Dynamic inertia
Weight	16.5kg
Handle	√
Expanded Size	727542515mm
Folded Size	193542515mm
Noise Level	Less than 56db(@1.5m & 25KPH)
Power Supply	100V~240V；Output：48V 1.35A
Compatible Wheel	26''~29'' MTB/700C RD
Compatible Frame	130/135mm quick release, 12142mm/12148mm thru-axle
Compatible Cassette	Shimano/Sram 8 ~ 11 speed cassette, Shimano road 12 speed cassette, Sram XDR 12-speed cassette (XDR freehub sold separately)
Trainer Status Indicator Light	Power On: Red and blue lights flash alternately twice //Standby: Blue light flashes //Riding: Blue light stays on
Connection Indicator Light (Bluetooth/ANT+)	Not Connected: Blue light flashes //Connected: Blue light stays on

In the box

T500 Smart Trainer x 1
power adapter and power cable x 1
quick release skewer x 1
freehub body spacer x 1
130/135 quick release adapter x 1
HG quick release cap (Installed) x 1
HG thru-axle cap x 1
12*142/148 thru-axle adapter x 1
disc brake pad spacer x 1
product manual x 1
front wheel riser x 1
4mm bike trainer mat x 1
standard 12 speed cassette x 1
5mm hex wrench x 1
17mm open-end wrench x 1
*XDR freehub、XDR thru-axle cap need to purchase separately
